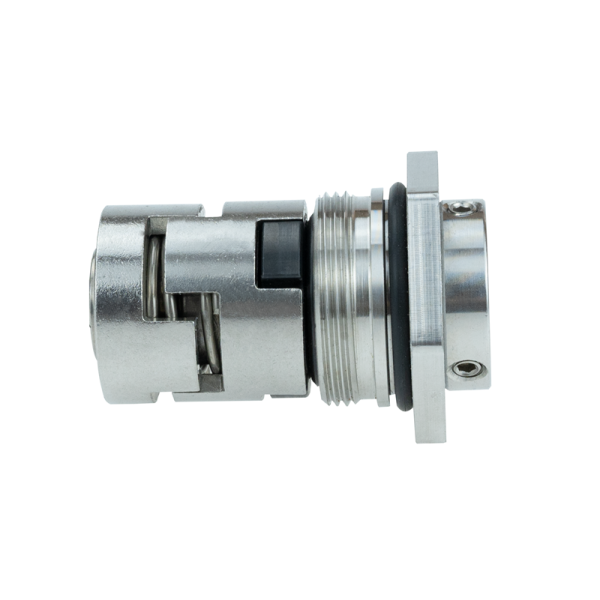

TG706H
TNG® Seal Type
TNG® Seal Type TG706H can be used in GRUNDFOS® Pump CR and CRN series Pump. with Shafrt size 12mm,16mm and 22mm.
TNG® Seal Type TG706H can be used in GRUNDFOS® Pump CR and CRN series Pump. with Shafrt size 12mm,16mm and 22mm.
Detail Information
Features
GRUNDFOS® Pump Types
TNG® Seal Type TG706H can be used in GRUNDFOS® Pump CR1，CR3，CR5，CRN1，CRN3，CRN5，CRI1，CRI3，CRI5 Series.
CR32， CR45， CR64， CR90 Series pump
CRN32， CRN45， CRN64， CRN90 Series pump
For more information, please do not hesitate to contact our Technology department
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Ethylene-Propylene-Diene (EPDM) E
Fluorocarbon-Rubber (Viton) V
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
Stationary Seat
Standard Shaft Size:12mm、16mm、22mm
TG706H-12
TG706H-16
TG706H-22
