TGHG202
Mechanical Seals for Agitator
TGHG202 is a Agitator mechanical seal, widely used in acid, alkali, oil and macromolecule suspend media. type TGHG202 is ideal for used in chemical, Petrochemical industry, pharmaceutica industry, reactor, mixer equipment
TGHG202 is a Agitator mechanical seal, widely used in acid, alkali, oil and macromolecule suspend media. type TGHG202 is ideal for used in chemical, Petrochemical industry, pharmaceutica industry, reactor, mixer equipment
Detail Information
Features
Multiple spring, single seal, unbalanced
Spring Pressure can be adjusted according to working pressure
Transmission by Pin，Independent of direction of rotation. 。
Conform with HG/T2269《Agitator mechanical seal technology》standard
Recommended Applications
Chemical, pharmaceutical and food industry
Poor self-lubricating, Easy condensation and vaporization media
Mixer and drying machine
Speical Rotating Equipment
Operating range
Shaft diameter: d1=30...110
Pressure: p=-0.1...0.25Mpa（36psi）
Temperature: t = -40 °C ...200 °C（-40°F to 392°F）
Speed N≤500r/min ）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

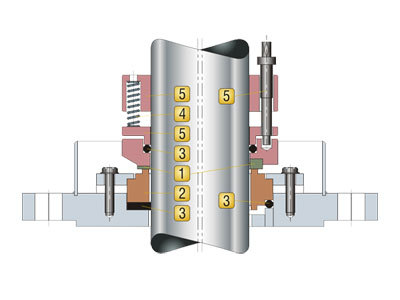

Product Structure
Combination Materials
1.Rotary Face
Silicon carbide (RBSIC),O
Tungsten carbide,W1
2.Stationary Seat
Silicon carbide (RBSIC),O
Carbon graphite resin impregnated,Ak
Tungsten carbide,W1
3.Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR),P
Fluorocarbon-Rubber (Viton),V
4.Spring
Stainless Steel (SUS304),F
5.Metal Parts
Stainless Steel (SUS304),F
