TG59U
John Crane Type59U Replacement
- PTFE wedge,Mutil-Spring
- construction mechanical seals Type TG59U
- can be adapted wide
- range of liquids and operating conditions due
- to extend material
- options. Type 59U is suitable for use with
- corrosive fluid media,
- such as typically corrosives, and chemicals.
Detail Information
Features
Features Mutil-Spring, Unbalanced, PTFE wedge construction.
Rotary seat with a snap ring holds all parts together in a unitised design which eases installation and removal
Torque transmission by set screws
Conform with DIN24960 standard
Recommended Applications
Chemical industry
Industry pumps
Process Pumps
Oil refining and petrochemical industry
Other Rotating Equipment
Operating range
Shaft diameter: d1=18...100 mm
Pressure: p=0...1.7Mpa（246.5psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Sliding velocity: Vg≤25m/s（82ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

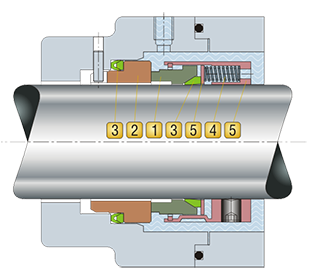

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Carbon graphite resin impregnated Ak
2. Stationary Seat
99% Aluminium Oxide B1
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Pure PTFE(PTFE) T
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
Stationary Seat
Standard Stationary Seat: T7BP
T7BP equivalent to ohn Crane BP
