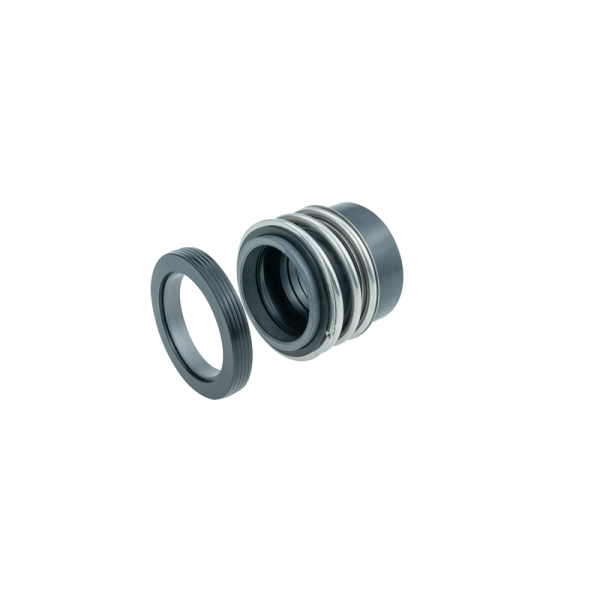

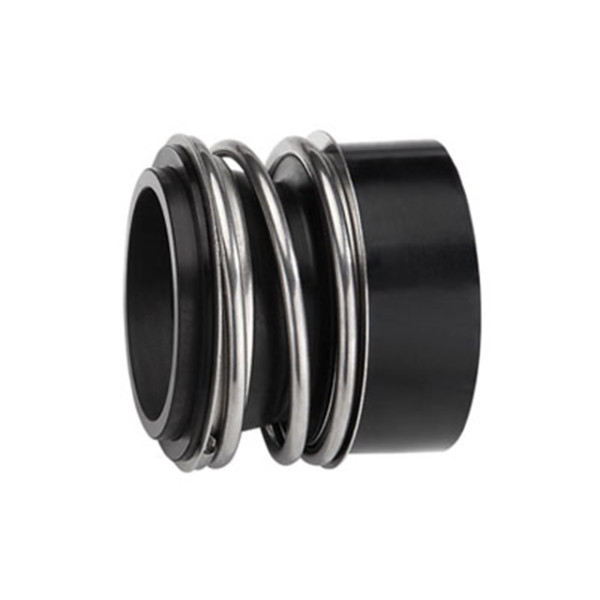

TG1093C

GRUNDFOS® Type G

NG® Seal Type TG706C can be used in GRUNDFOS® Pump PT、NK Seires Pump LM(D)/LP(D)，NM/NP，DNM/DNP ,33mm Seires Pump. Standard Shaft Size:12mm，28mm， 33mm，38mm， 45mm，48mm.

Contact Now

Favorites

Detail Information

Features

GRUNDFOS® Pump Types

TNG® Seal Type TG1093C can be used in GRUNDFOS® Pump

PT、NK Seires Pump

LM(D)/LP(D)，NM/NP，DNM/DNP,33mm Seires Pump

CLM，CDM，45mm Seires Pump

For more infroamtion, please do not hesitate to contact our Technology department

Combination Materials

1. Rotary Face

Silicon carbide (RBSIC) O

Tungsten carbide W1

2. Stationary Seat

Silicon carbide (RBSIC) O

Tungsten carbide W1

3. Auxiliary Seal

Ethylene-Propylene-Diene (EPDM) E

Fluorocarbon-Rubber (Viton) V

4. Spring

Stainless Steel (SUS304) F

Stainless Steel (SUS316) G

5. Metal Parts

Stainless Steel (SUS304) F

Stainless Steel (SUS316) G

Stationary Seat

Standard Shaft Size:12mm，28mm，33mm，38mm，45mm，48mm

TG1093C-12

TG1093C-28

TG1093C-33

TG1093C-38
