TGHG212
Mechanical Seals for Agitator
TGHG212 is a Agitator mechanical seal, widely used in acid , alkali, oil and macromolecule suspend media. type TGHG212 is ideal for used in chemical, Petrochemical industry, pharmaceutical industry, reactor, mixer equipment
TGHG212 is a Agitator mechanical seal, widely used in acid , alkali, oil and macromolecule suspend media. type TGHG212 is ideal for used in chemical, Petrochemical industry, pharmaceutical industry, reactor, mixer equipment
Detail Information
Features
Multiple spring, single seal, unbalanced
Easy to installation
Conform with HG/T2269《Agitator mechanical seal technology》standard
Recommended Applications
Chemical, pharmaceutical and food industry
Poor self-lubricating, Easy condensation and vaporization media
Mixer and drying machine
Speical Rotating Equipment.
Operating range
Shaft diameter: d1=40...150
Pressure: p=-0.1...0.5Mpa（72.5psi）
Temperature: t = -10 °C ...120 °C（-14°F to 248°F）
Speed N≤500r/min ）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

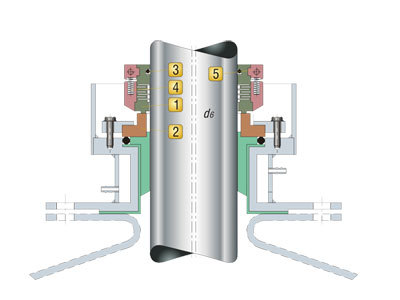

Product Structure
Combination Materials
1.Rotary Face
Glass Filled PTFE Y
2.Stationary Seat
Silicon carbide (RBSIC),O
99%Al2O3 ceramic B1
3.Auxiliary Seal
Composite PTFE Y1
4.Spring
Stainless Steel （SUS316),G
5.Metal Parts
Stainless Steel (SUS304),F
Gasket
Pure PTFE,T
