G120A
EagleBurgmann BT-RN series ReplacementT

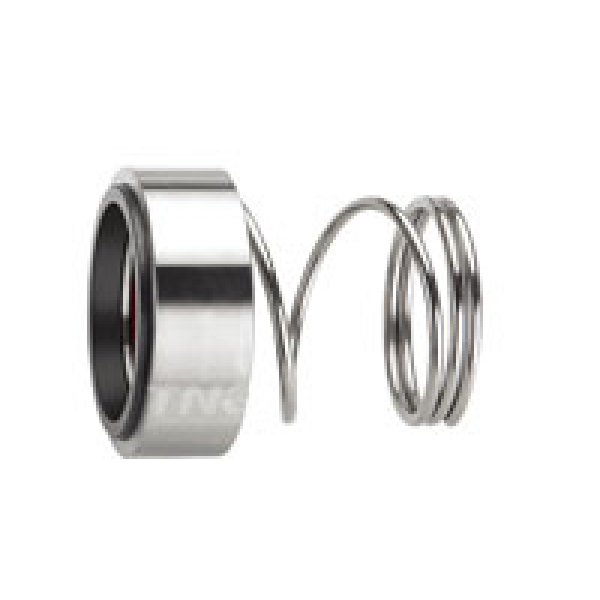

- Type TG120M
- mechancal seal range feature a spring loaded
- solid carbon
- graphite or silicone carbide seal face. It is
- conical spring
- and O-ring pusher construction mechanical
- seals with economical
- price. it is widely used in basic applications
Detail Information
Features
Conical spring,unbalanced,O-ring pusher construction
Torque transmission via conical spring, independent of direction of rotation
Wide option in seal face material
Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids
Recommended Applications
Paper and sugar industry,Food Processing,waste water technology
Low solids content or viscous media
Sewage pumps, chemical pumps, screw pumps, process pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=8...100 mm
Pressure: p=0...1.0Mpa（145psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Sliding velocity: Vg≤15m/s（49.2ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials
Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Cr-Ni-Mo Sreel (SUS316) G
Tungsten carbide surfacing I
2. Stationary Seat
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
Fluorocarbon-Rubber (Viton) V
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Stationary Seat: T8RN T4RN
Alternatives Stationary Seat: T3RN T15RN T7RN T5RN
