TG120HB
EagleBurgmann H12N series Replacement
- Balanced, conical
- spring and O-ring pusher construction mechanical
- seals Type TG120HB,
- Used in the different media and medium
- pressure-support
- conditions due to extend material options.
- It is widely used in
- the general industrial applications.
Detail Information
Features
Conical spring, balanced,O-ring pusher construction
Torque transmission via conical spring, independent of direction of rotation.
Wide option in seal face material 。
Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids.
Medium pressure-support due to Balanced design
Dimensional data conform with DIN24960 standard
Recommended Applications
Paper and sugar industry,Food Processing,waste water technology
Low solids content or viscous media
Medium pressure-support conditions
Sewage pumps, chemical pumps, screw pumps, process pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=12...80mm
Pressure: p=0...2.5Mpa（362.5psi）
Temperature: t = -20 °C ...180 °C（-4°F to 356°F）
Sliding velocity: Vg≤15m/s（49.2ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

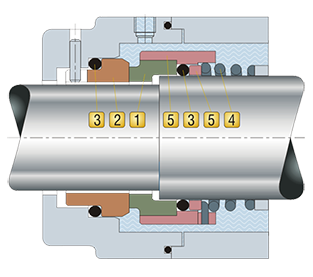

Product Structure
Combination Materials
1. Rotary Face
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Antimony Impregnated Carbon Graphite Ad
2. Stationary Seat
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Cr-Ni-Mo Sreel (SUS316) G
99% Al2O3 ceramic B1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
Silicone-Rubber（MVQ) S
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Stationary Seat: T4G9
T4G9 equivalent to Burgmann G9
Alternatives Stationary Seat: T7G9
T7G9 equivalent to Burgmann G9
