TG8B
John Crane Type8B-1 Replacement
- Mutil-Spring, and
- O-ring pusher mechanical seal Type TG8B with
- balanced construction,
- including anti-xetrusion ring, permits use in
- higher pressures.
- Used in the different media conditions due
- toextend material
- options . It is widely used in the general
- industrial
- applications.
Detail Information
Features
Mutil-Spring、Unbalanced 、,O-ring pusher
Rotary seat with a snap ring holds all parts together in a unitised design which eases installation and removal
Torque transmission by set screws.
Conform with EN12756 standard
Recommended Applications
Chemical industry
Industry pumps
Process Pumps
Oil refining and petrochemical industry
Other Rotating Equipment
Operating range
Shaft diameter: d1=18...100mm(0.750''...4.000'')
Pressure: p=0..5.8Mpa（841psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Sliding velocity: Vg≤25m/s（82ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

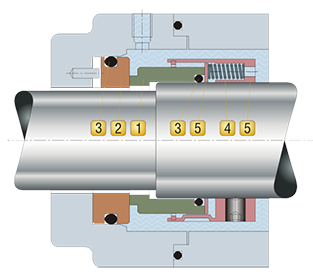

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Carbon graphite resin impregnated Ak
2. Stationary Seat
99% Aluminium Oxide B1
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
PTFE Enwrap Viton M1
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
Stationary Seat
Standard Stationary Seat: T6WG
T6WG equivalent to John Crane WG
