TG9B
John Crane Type109B Replacement
- PTFE wedge, Balanced
- ,Mutil-Spring construction mechanical seals
- Type 9B is suitable
- for use with corrosive fluid media, such as
- typically corrosives,
- and chemicals.
Detail Information
Features
Mutil-Spring, Balanced, PTFE wedge construction.
Rotary seat with a snap ring holds all parts together in a unitised design which eases installation and removal
Torque transmission by set screws，
Conform with EN12756 standard
Recommended Applications
Chemical industry
Industry pumps
Process Pumps
Oil refining and petrochemical industry
Other Rotating Equipment
Operating range
Shaft diameter: d1=18...100mm(0.750'' ...4.000'')
Pressure: p=0...2.4Mpa（348psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Sliding velocity: Vg≤25m/s（82ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

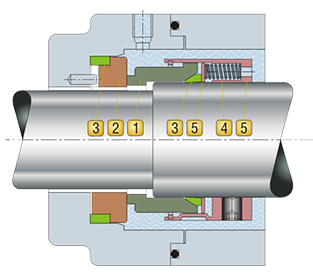

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Carbon graphite resin impregnated Ak
2. Stationary Seat
99% Aluminium Oxide B1
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Pure PTFE(PTFE) T
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Stationary Seat: T26AG
T26AG equivalent to John Crane AG
Alternatives Stationary Seat: T9V
T9V equivalent to John Crane V
