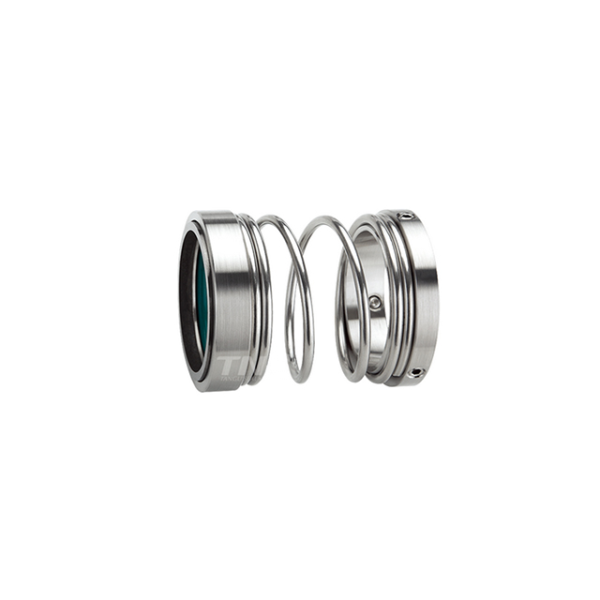

TG1527
O-ring pusher construction mechanical seals
- Typically seals with
- large spring, O-ring pusher construction.
- Type TG1527 with
- easy to install, covers a wide range of
- applicatio and reliable
- performance characteristic. With extend
- combination material
- options，widely used in general corrosive
- chemical pump,Sewage
- pumps and industrial pumps
Detail Information
Features
O-ring pusher construction.
Transmission by typical large spring,independent of direction of rotation
Single seal, unbalanced.
Low risk of clogging in solids content or viscous liquids
Recommended Applications
Petrochemical industry and sewage treatment industry
Low solids content or viscous media
Sewage pumps and industrial pumps and chemical pumps.
Other Rotating Equipment.
Operating range
Shaft diameter: d1=18...100mm
Pressure: p=0...1.0Mpa（145psi）
Temperature: t = -40 °C ...150 °C(-40°F to 302°F)
Sliding velocity: Vg≤10m/s（32.8ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials
Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Stationary Seat: T5S43
Alternatives Stationary Seat: T4S43
