TG102U
O-ring pusher construction
Multiple spring and O-ring pusher mechanical seals TG102, with extend combination material options，frequently used in sewage treatment,low corrosive media such as oil and chemical instrudy
Multiple spring and O-ring pusher mechanical seals TG102, with extend combination material options，frequently used in sewage treatment,low corrosive media such as oil and chemical instrudy
Detail Information
Features
O-Ring pusher construction, available in PTFE V-Ring pusher construction
Transmission by Pin and groove，independent of direction of rotation .
Multiple spring, single seal, unbalanced construction
Recommended Applications
Petrochemical industry and sewage treatment industry
Sewage pumps and industrial pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=25...85mm
Pressure: p=0...1.2Mpa（174psi）
Temperature: t = -30 °C ...180 °C(-22°F to 356°F)
Sliding velocity: Vg≤10m/s（32.8ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

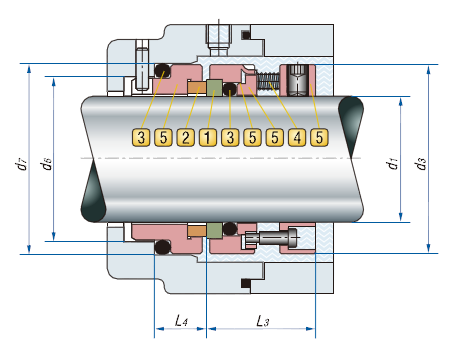

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard: T5A
Alternatives:T4A
