TG124
O-Ring pusher mechanical seals
- TNG type TG124 with
- extend combination material options
- designed,frequently used
- in sewage treatment,low corrosive
- media such as oil and
- chemical instrudy. Mechanical seal
- type TG112 with O-Ring
- pusher construction and single seals.
Detail Information
Features
O-Ring pusher construction
Independent of direction of rotation
Single seal, unbalanced
Low risk of clogging in solids content or viscous liquids
Recommended Applications
Petrochemical industry and sewage treatment industry
Low solids content or viscous media
Sewage pumps, chemical pumps, screw pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=20...95mm
Pressure: p=0...1.2Mpa（174psi）
Temperature: t = -20 °C ...180 °C(-4°F to 356°F)
Sliding velocity: Vg≤15m/s（49.2ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

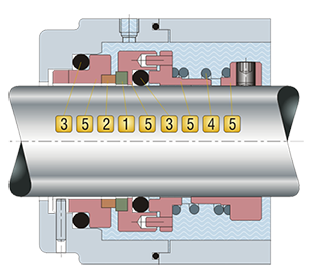

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Seat: T5D
Alternatives Seat: T4D
