TGJB103
O-Ring pusher mechanical seals PTFE V-Ring pusher mechanical seals
Type TGJB103 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction.Torque transmission viatypical large spring. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions.
Type TGJB103 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction.Torque transmission viatypical large spring. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions.
Detail Information
Features
Features O-Ring pusher construction, available in PTFE V-Ring pusher construction
Transmission by typical large spring,independent of direction of rotation
Single seal, unbalanced.
Dimensional data conform with ISO3069 standard
Recommended Applications
Petrochemical industry and sewage treatment industry
Sewage pumps, chemical pumps, screw pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=16...120mm
Pressure: p=0...0.8Mpa（116psi）
Temperature: t = -20 °C ...80 °C(-4°F to 176°F)
Sliding velocity: Vg≤10m/s（32.8ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

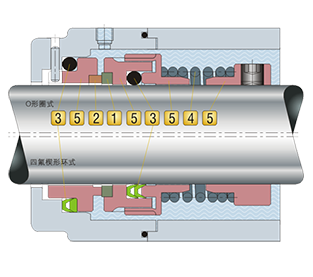

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
PTFE T
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Seat: T4D
Alternatives Seat: T5D
