TGJB104
O-Ring pusher mechanical seals PTFE V-Ring pusher mechanical seals
Type TGJB104 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions
Type TGJB104 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions
Detail Information
Description :
Type TGJB104 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions
Features
O-Ring pusher construction，available in PTFE V-Ring pusher construction
Transmission by Pin and groove，independent of direction of rotation .
Single seal, unbalanced.
Dimensional data conform with ISO3069 standard.
Recommended Applications
Petrochemical industry and sewage treatment industry
Sewage pumps, chemical pumps, screw pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=16...120mm
Pressure: p=0...0.8Mpa（116psi）
Temperature: t = -20 °C ...80 °C(-4°F to 176°F)
Sliding velocity: Vg≤10m/s（32.8ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

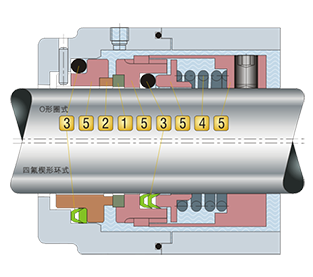

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2. Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
PTFE T
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Seat: T4D
Alternatives Seat: T5D
