TG120
O-Ring pusher mechanical seals
- TG120 is conical spring and
- O-ring pusher construction mechanical seals.
- PTFE V-Ring pusher construction
- is available in the type. Due to extend
- combination material options
- designed, it can be used in both gerenal
- media and corrosive
- liquid condition
Detail Information
Features
Conical spring,unbalanced,O-ring pusher construction
Torque transmission via conical spring, independent of direction of rotation
Wide option in seal face material
Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids
Dimensional data conform with DIN24960 standard
Recommended Applications
Paper and sugar industry,Food Processing,waste water technology
Low solids content or viscous media
Sewage pumps, chemical pumps, screw pumps, process pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=12...80mm
Pressure: p=0...1.0Mpa（145psi）
Temperature: t = -20 °C ...180 °C（-4°F to 356°F）
Sliding velocity: Vg≤15m/s（49.2ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

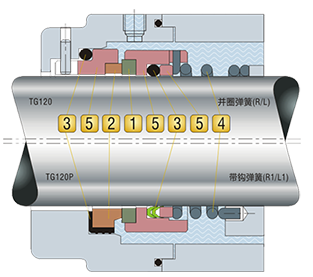

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Cr-Ni-Mo Sreel (SUS316) G
Surface hardfacingtungsten carbide I
2. Stationary Seat
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Seat: T5A
Alternatives Seat: T4A
