TG90B
EagleBurgmann HJ92N series Replacement
TG 90B is balanced, wave spring mechanical seal，with spring-protectio design, non-clogging. mechanical seal for TG90B series are deigned for media containing solid or with high viscosity. it is widely used in paper,textile printing, sugar and and sewage treatment industry
TG 90B is balanced, wave spring mechanical seal，with spring-protectio design, non-clogging. mechanical seal for TG90B series are deigned for media containing solid or with high viscosity. it is widely used in paper,textile printing, sugar and and sewage treatment industry
Detail Information
Features
Wave spring、balanced、O-ring pusher construction.
Transmission by Pin and groove，independent of direction of rotation .
Spring-protection design.
Low risk of clogging in solids content or viscous liquids
Recommended Applications
Paper and sugar industry, sewage treatment industry
solids content or viscous media
Sludge pumps, multistage pumps
Other Rotating Equipment.
Operating range
Shaft diameter: d1=16...100mm
Pressure: p=0...1.6Mpa（232psi）
Temperature: t = -20 °C ...200 °C（-4°F to 392°F）
Sliding velocity: Vg≤20m/s（65.6ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

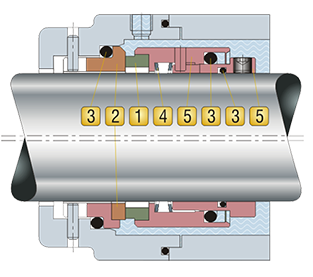

Product Structure
Combination Materials
1. Rotary Face
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Antimony Impregnated Carbon Ad
2. Stationary Seat
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
5. Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Stationary Seat
Standard Stationary Seat: T7G16
T7G16 equivalent to Burgmann G16
Alternatives Stationary Seat:T5G46
T5G46 equivalent to Burgmann G46
